Available For Doors : PVC, Armoured, Wood, Aluminium

No Sound Series

Certified for :

Fire resistance 60 min.

Insulation from smoke1,65 m3 / h / m – 25 Pa.

Usage cycles 200.000 cycles.

Protects from Air, Water, Light and Insects

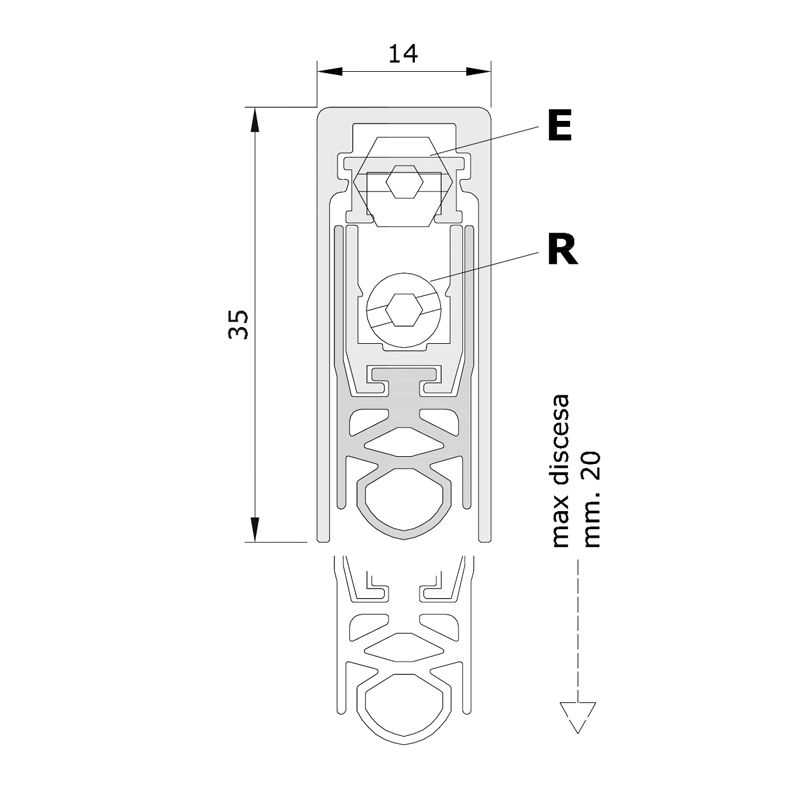

Dimensions : L 630 X H 35 X D 14 MM



COMPONENTS:

Extruded profiles in 6060 aluminum alloy – high performance tubular silicone gasket – molded elements in self-lubricating nylon + nylon reinforced with 30% glass fiber – threaded rods in burnished iron – 7 mm hexagonal button. and Ø 6 mm brass bushing – coil springs in treated stainless steel.
