The LPA52-463 super economy full-motion mount accommodates most 37″-70″ flat panel TVs up to 35kg/77lbs. This mount extends out 427mm from wall and allows full-motion capabilities. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. Integrated cable management system keeps cables organized and protected.





FEATURES

●Free-Tilting Design: for multiple monitor viewing angles

●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

●Built-In Level Adjustment: ensures perfect positioning

●Cable Management: keeps everything organized





SPECIFICATION

Product Category: Full-motion TV Wall Mount

Rank: Economy

Material: Steel

Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.059″ cold-rolled sheet,Wall Plate THK=0.079″ cold-rolled sheet,VESA Panel THK=0.071″ cold-rolled sheet)

Pipe Size: 40x20x1.5mm , 30x20x1.5mm (1.6″x0.79″x0.059″ , 1.2″x0.79″x0.059″)

Surface Finish: Powder Coating

Color: Fine Texture Black

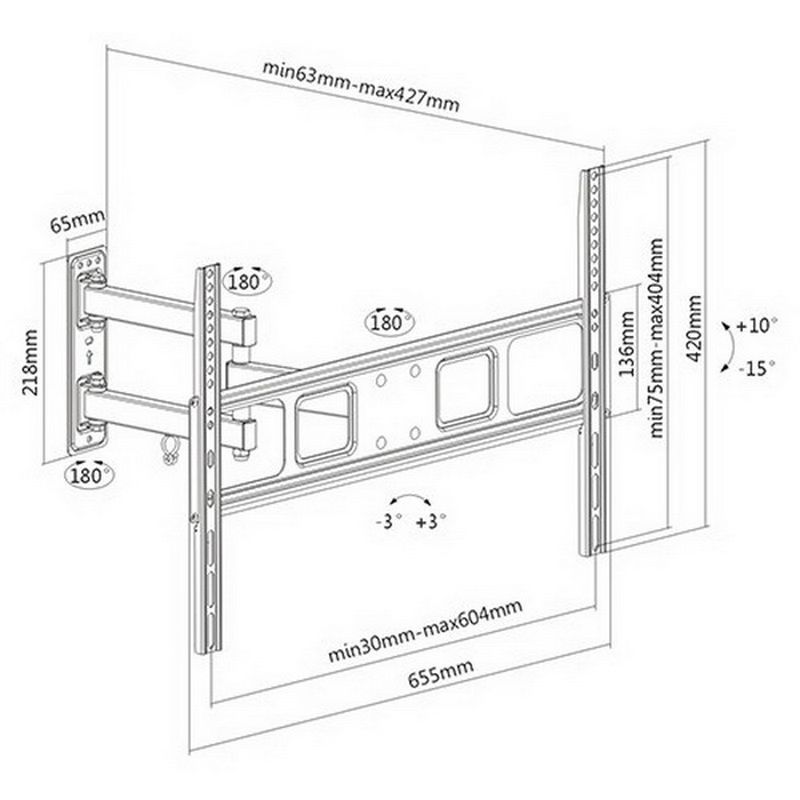

Dimensions: 427x655x420mm (16.8″x25.8″x16.5″)

Fit Screen Size: 37″-70″

Fit Curved TV: Yes

Mounting Hole Pattern : VESA & Universal

VESA Compatible: 200×200,300×300,400×200,400×400,600×400

Max. VESA: 604x404mm

Weight Capacity: 35kg (77lbs)

Strength Tested: 2 Times Approved

Profile: 63~427mm (2.5″~16.8″)

Tilt Range: ＋10°～-15°

Swivel Range: +90°~-90°

Screen Level: +3°~-3°

Screen Freely Tilting: Yes

Installation: Solid Wall,Single Stud

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

Cable Management: Yes

Anti-theft: No

Bubble Level: No

Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Instruction Manual Included: Yes

By Function: Full motion
