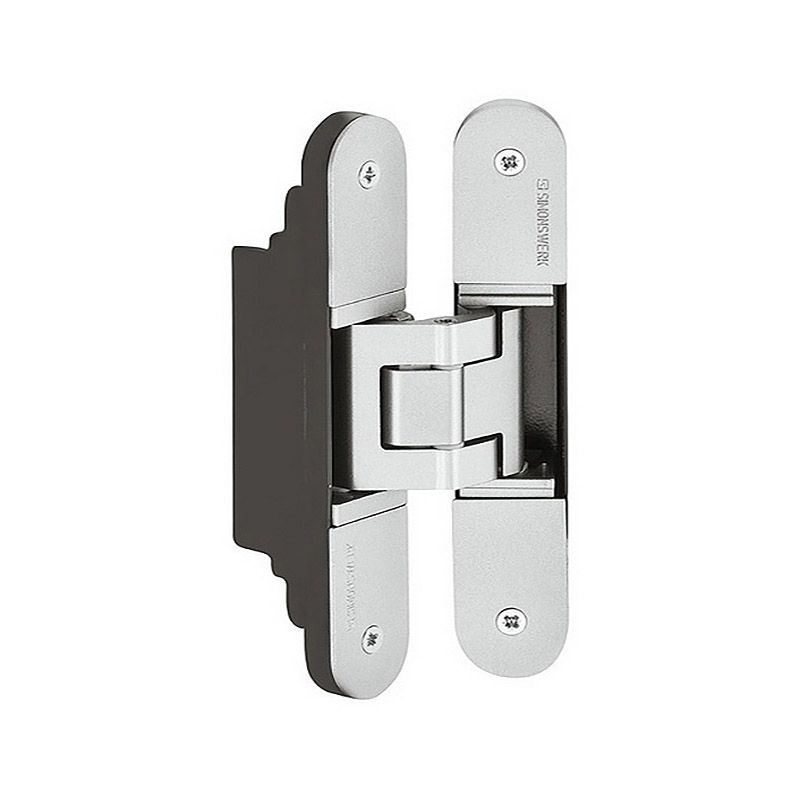

Product features
▪ completely concealed hinge system
▪ for timber, steel or aluminium frames
▪ for unrebated residential and heavy-duty doors
▪ maintenance-free slide bearings
▪ with comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm,
compression +/- 1,0 mm)
▪ sideways closed hinge body for a homogeneous mortise appearance

Color : Satin Chrome
Technical details
load capacity 80,0 kg
Tow hinges per door leaf (1 x 2 )
overall length 160,0 mm
width (door) 28,0 mm
width (frame) 28,0 mm
cutter Ø 24,0 mm
opening angle 180° degree
