FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

●Leveling adjustments: allow TV to be perfectly positioned after hanging

●Cable Management: keeps everything organized



SPECIFICATIONS

Product Category : Full-motion TV Wall Mount

Rank : Standard

Material : Steel,Plastic

Metal Sheet Thickness : Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,Wall Plate THK=0.098″ pickling sheet)

Pipe Size : 40x20x1.5mm,30x10x1.2mm

Surface Finish : Powder Coating

Color : Fine Texture Black

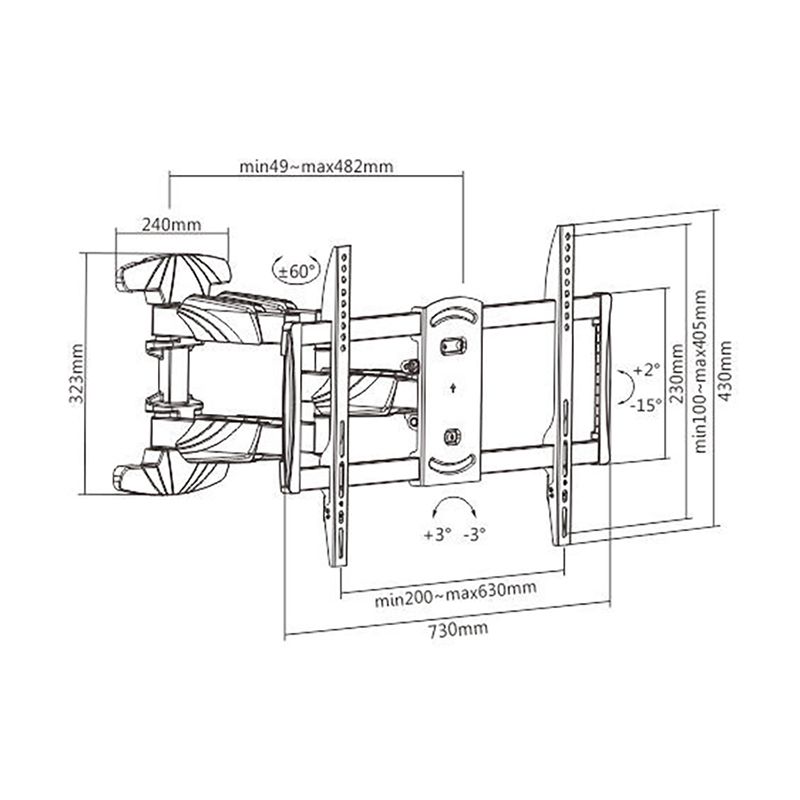

Dimensions : 730x430x482mm

Fit Screen Size : 37″-70″

Fit Curved TV : Yes

Mounting Hole Pattern : VESA & Universal

VESA Compatible : 200×200,400×200,300×300,400×400,600×400

Max. Mounting Hole : 600×400

Weight Capacity : 45kg

Strength Tested : 3 Times Approved

Profile : 49~482mm

Tilt Range : ＋2°～-15°

Swivel Range : +60°~-60°

Screen Level : +3°~-3°

Screen Freely Tilting : No

Installation : Solid Wall,Single Stud

Panel Type : Detachable Panel

Wall Plate Type : Fixed Wall Plate

Cable Management : Yes

Anti-theft : No
