Technical details

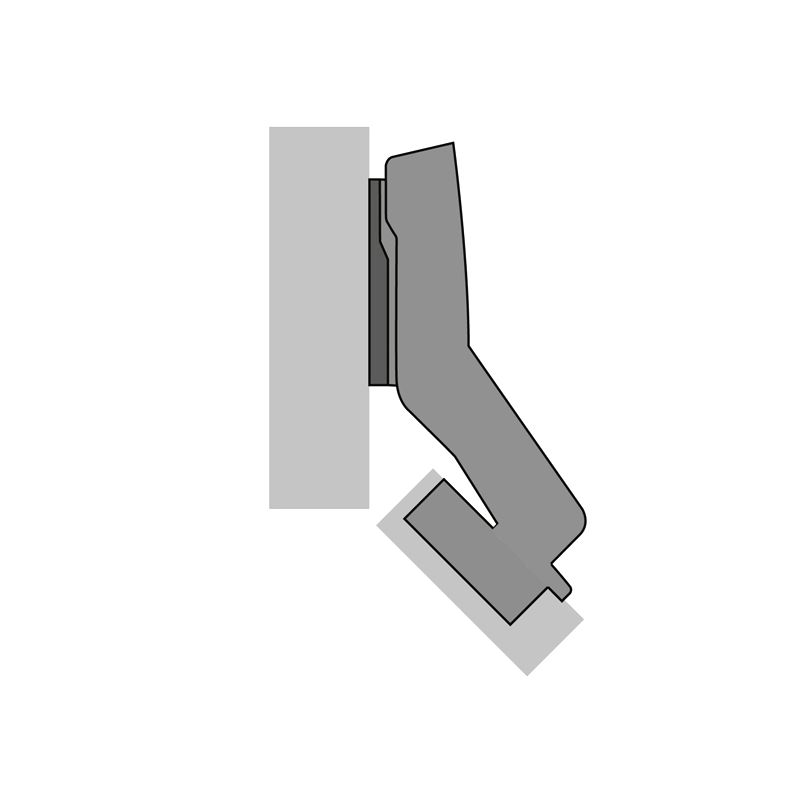

Design : Corner cabinet 135° (W45)
Door type : Standard door / wooden door
Aluminium framed door (profile width from 50 mm)
Wood framed door (profile width from 50 mm)
User friendly features : with integrated silent system
Door mounting option : inset
Opening angle : 95°
Min. door thickness : 15 mm
Max. door thickness : 28 mm
Cup version : TH 52
Base : -25 mm
Cup diameter : 35 mm
Cup depth : 12.8 mm
Type of installation : for screwing on
Hinge surface finish : steel / die-cast zinc nickel plated

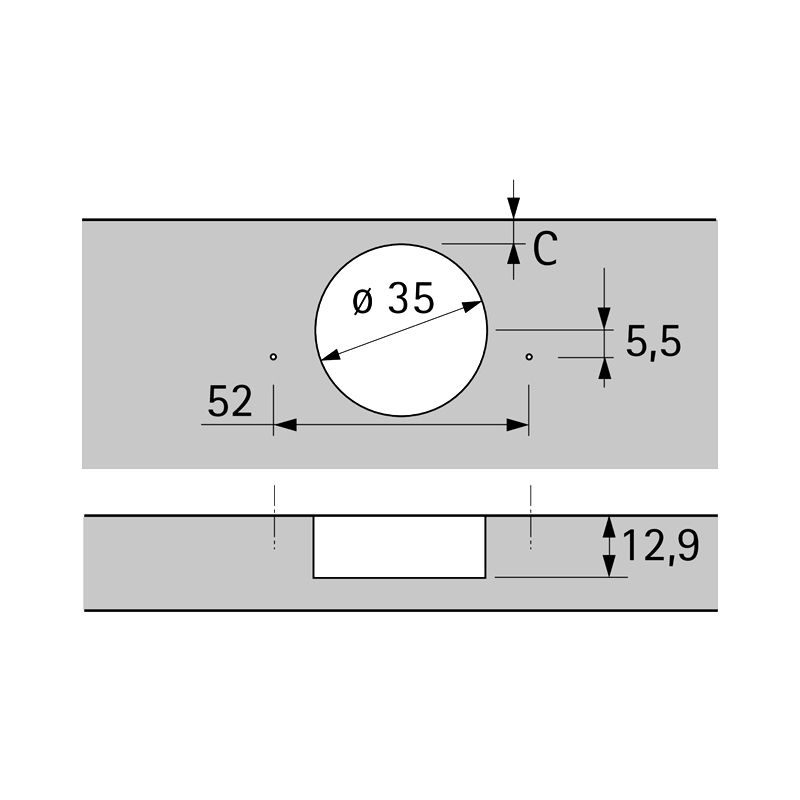

Drilling pattern : TH 52 x 5,5 mm
Diameter of mounting hole : Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment : +2 mm / -2 mm
Integrated depth adjustment : +3 mm / -2 mm
Stay closed function : Yes
Finish : nickel plated
