Technical details
– Design : 90° construction
Door type : aluminum profile / wooden door
Aluminium framed door (profile width from 50 mm)
– User friendly features : with integrated silent system

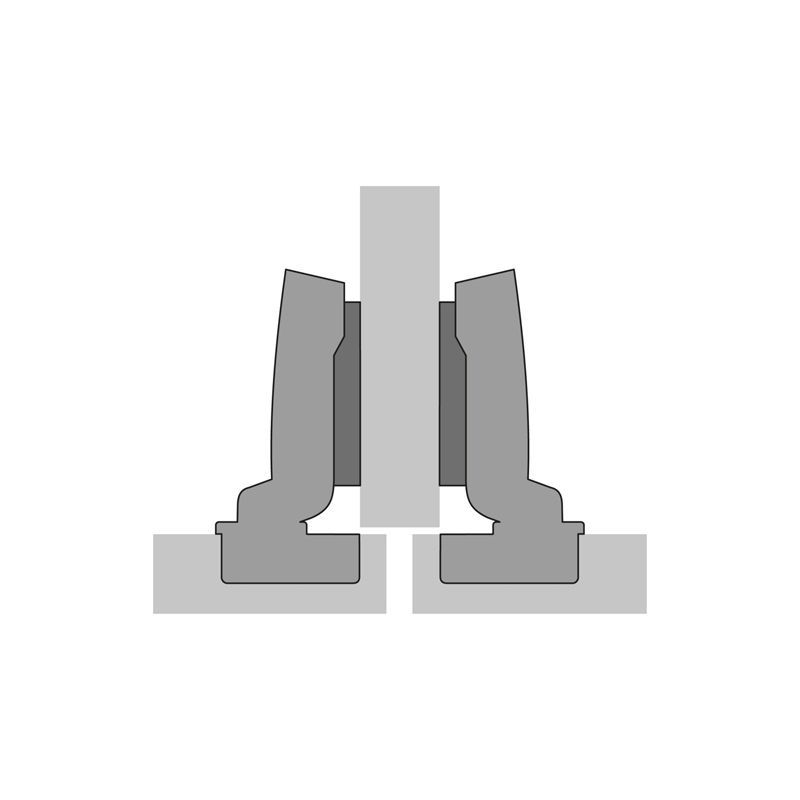

– Door mounting option : half overlay
– Opening angle : 110 °
– Min. door thickness : 15 mm
– Max. door thickness : 24 mm
– Cup version : TH 52
– Base : 3 mm
– Cup diameter : 35 mm
– Cup depth : 12.8 mm
– Type of installation : for screwing on
– Hinge surface finish : steel nickel plated

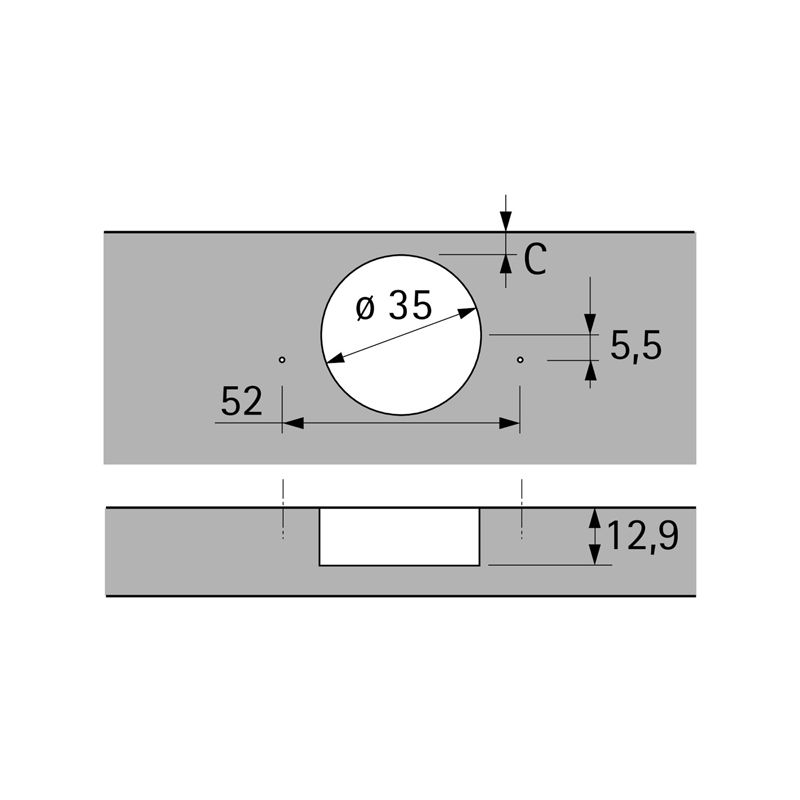

– Drilling pattern : TH 52 x 5,5 mm
– Diameter of mounting hole : Centre punch
– Predrilled hole : 2.5 mm Ø max.
– Integrated overlay adjustment +2 mm / -2 mm
– Integrated depth adjustment +3 mm / -2 mm
– Stay closed function : Yes
– Finish : nickel plated
