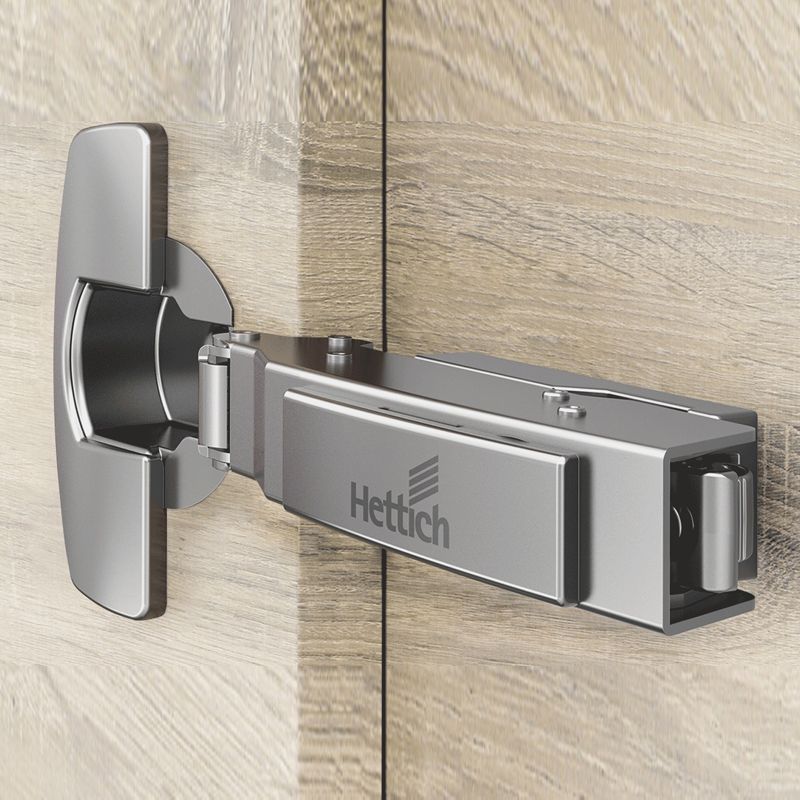

Technical details
Design : 90° construction
Door type : Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm)
User friendly features : without self closing feature
Door mounting option : overlay
Opening angle : 110 °
Min. door thickness : 15 mm
Max. door thickness : 24 mm
Cup version : TH 52
Base : 12.5 mm
Cup diameter : 35 mm
Cup depth : 12.8 mm
Type of installation : for screwing on
Hinge surface finish : steel nickel plated

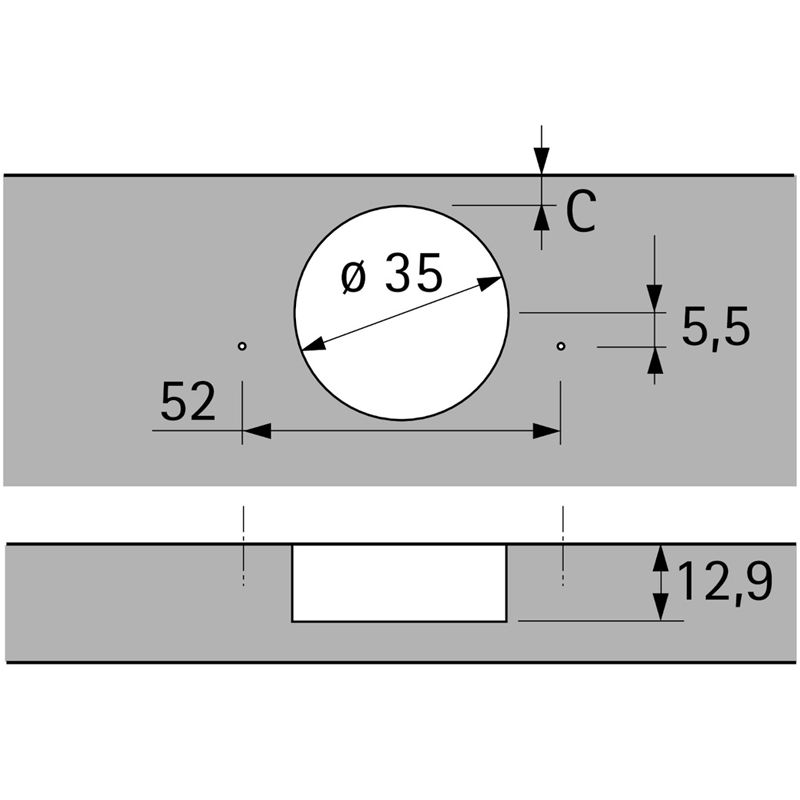

Drilling pattern : TH 52 x 5,5 mm
Diameter of mounting hole : Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment : +2 mm / -2 mm
Integrated depth adjustment : +3 mm / -2 mm
mounting plate Height adjustment : oblong hole height adjustment
mounting plate adjustment range : + 1.6 mm / – 1.6 mm
Hole line : Hole line 20 x 32 mm
Stay closed function : No
Finish : nickel plated
