Technical details
Design : 90° construction
Door type : Aluminium framed door / wooden door
User friendly features : with integrated silent system

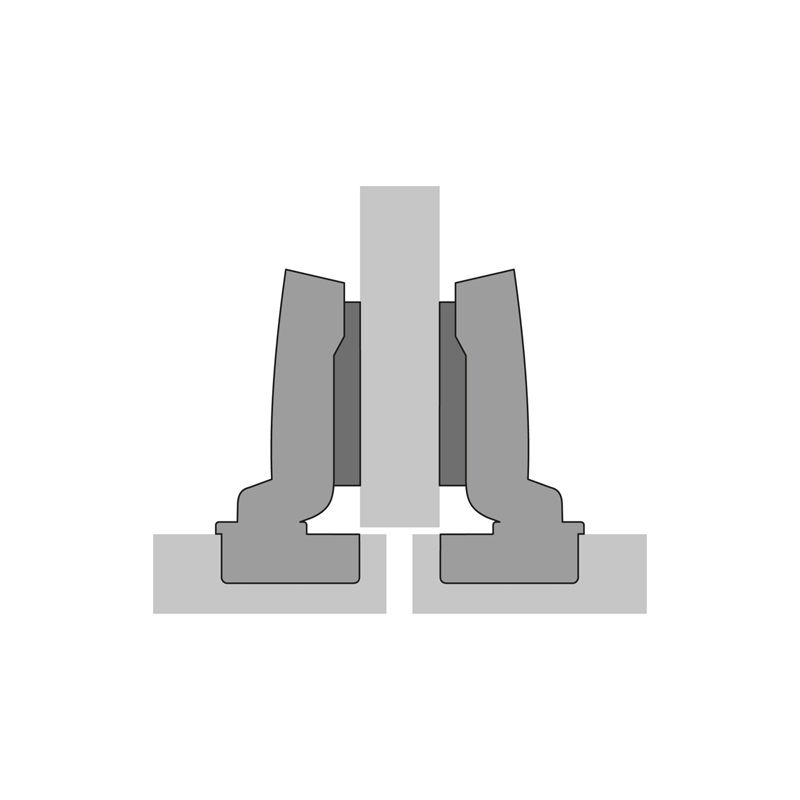

Door mounting option : half overlay
Opening angle : 110 °
Min. door thickness : 15 mm
Max. door thickness : 24 mm
Cup version : TH 52
Base : 3 mm
Cup diameter : 35 mm
Cup depth : 12.8 mm
Type of installation : for screwing on
Hinge surface finish : steel nickel plated

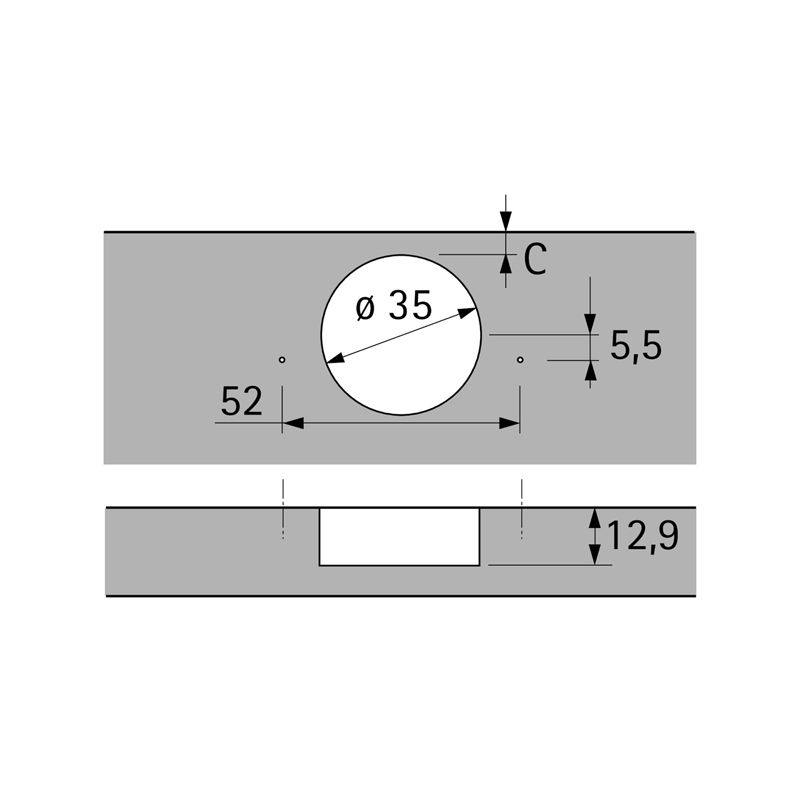

Drilling pattern : TH 52 x 5,5 mm
Diameter of mounting hole : Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment : +2 mm / -2 mm
Integrated depth adjustment : +3 mm / -2 mm
mounting plate Height adjustment : Direct height adjustment
mounting plate adjustment range : + 2 mm / – 2 mm
Stay closed function : Yes
Finish : nickel plated
