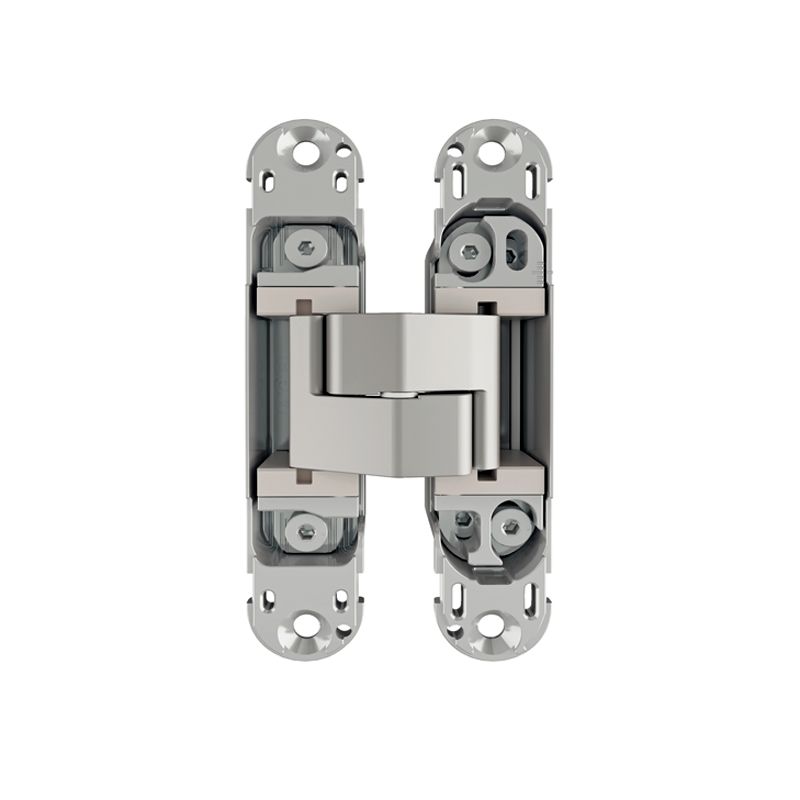

Product features:
– steel levers, ideal for heavy doors
– capacity 60 kg x 2 hinges , 80 kg x 3 hinges
– Eclipse 3.2 HD is adjustable on 3 axis and allows a 180°opening.

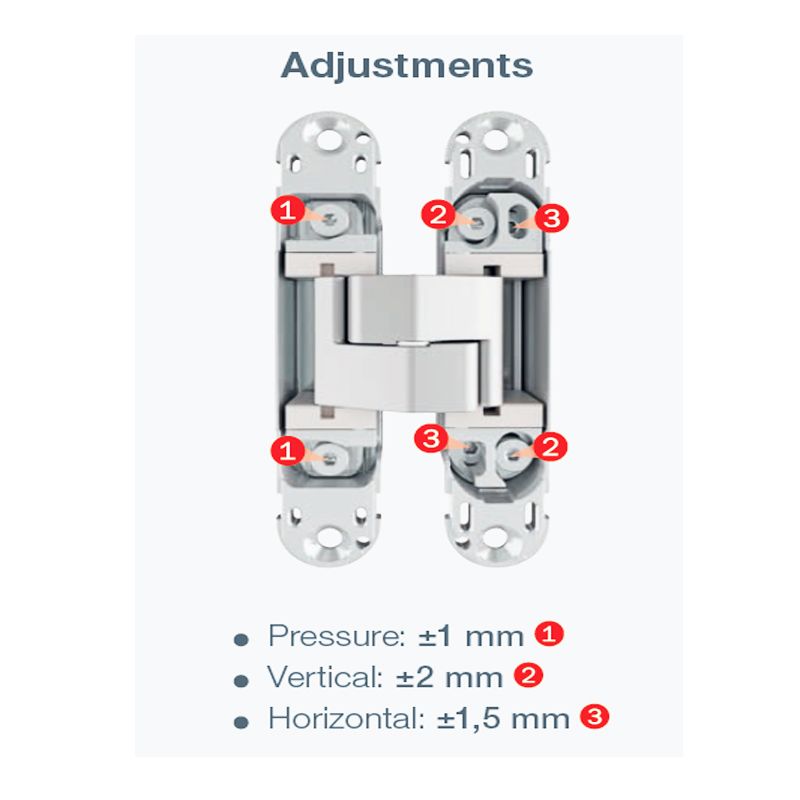

– adjustments in pressure ±1 mm , vertical ±2 mm and horizontal ±1,5 mm

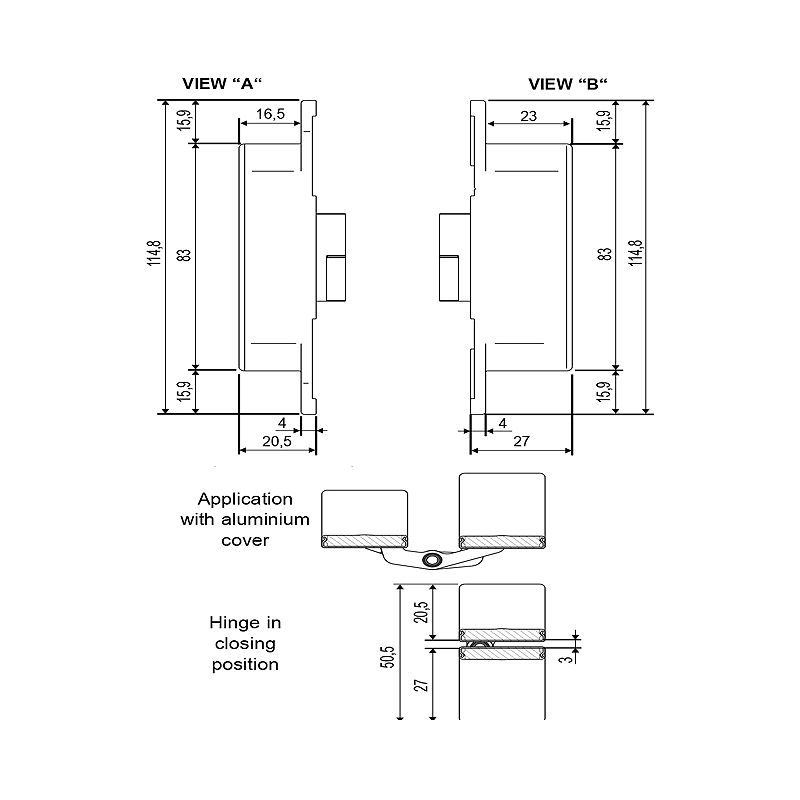

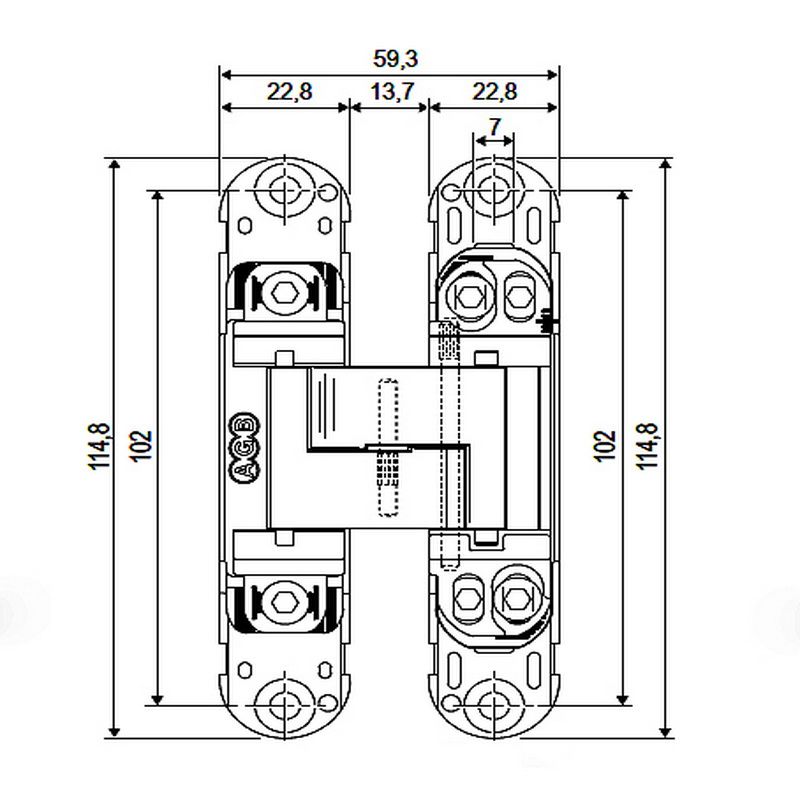

– height 115 mm
– max. Extension 14 mm
– for wooden and aluminum doors
– flush covers in aluminum hide the adjustment screws and keep the door beauty even when the sash is open.
– certification : fire door en1634
– made in italy

Material : steel
Color : matt chromium
a price for one piece (1 hinge)
