Description:

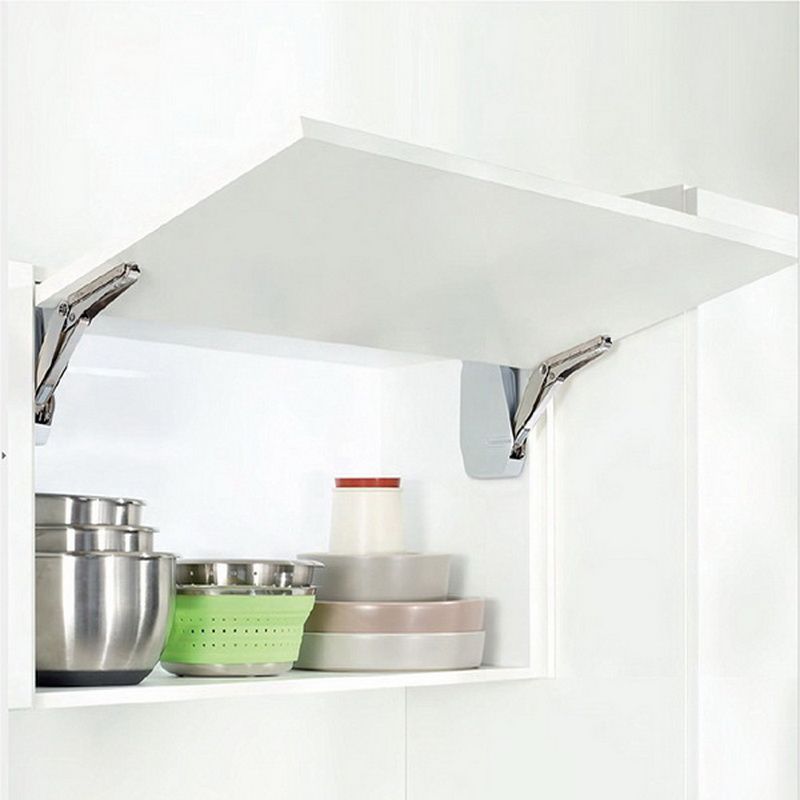

Free Flap Mini is an ideal mechanism for small-sized facades without the use of hinges! It is perfect for inset facades, ceiling cabinets and furniture with cornices.

The compact size of the mechanism makes it possible to install it in a housing with a depth of 108 mm, a facade height of up to 450 mm and a load of up to 14.7 kg.

The power unit consists of high-strength steel springs coupled with a built-in damping system.

It has smooth and silent opening/closing and the function of stopping the facade in any position.

Technical informations :
Minimal installation depth (118 mm)
Total opening angle: 107°
a facade height of up to 450 mm
Multi-position fixation of the facade at a comfortable height.

A set consists of:
2 FREEflap mini fitting (right and left)
2 dress covers for the fittings (right and left)
2 front connecting plates
Drilling template (paper)

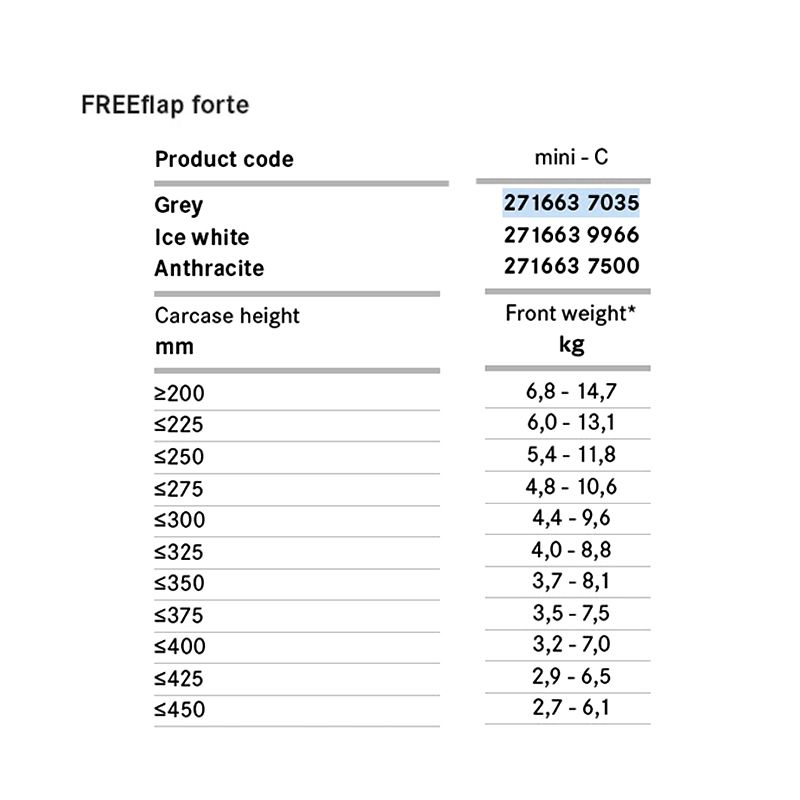

Load capacity based on facade height : attached image
Dimensions : L 167 X W 107 X D 34 mm
Finish : Gray
