DESCRIPTION

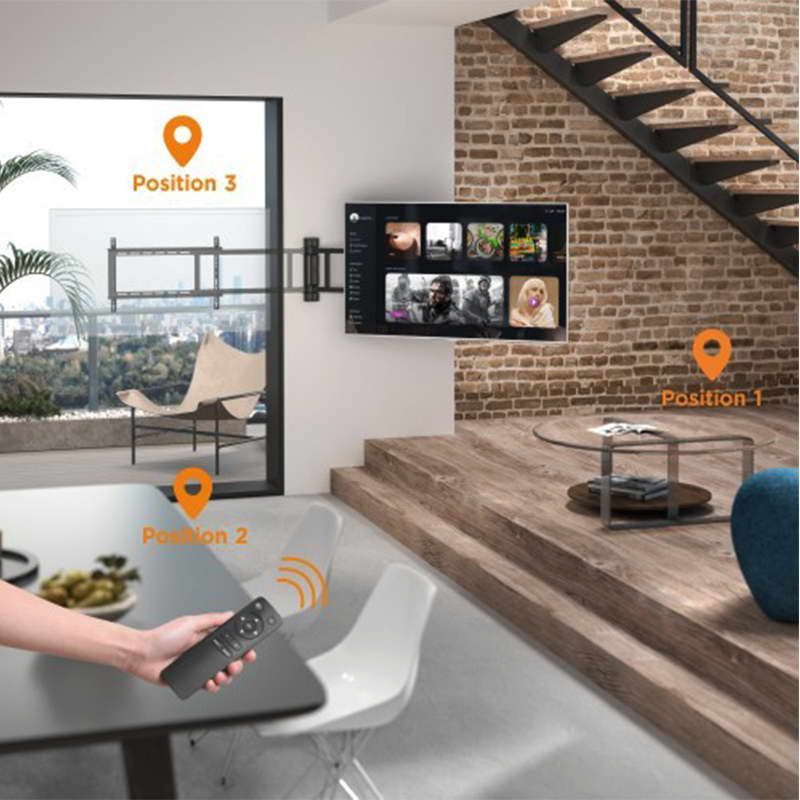

Find the perfect viewing angle with one simple press. LUMI’s PLB-M06 Motorized Swing TV Mount is designed for most 32” -75” TVs up to 50kg/110lbs. This mount can move your TV up to 170 degrees, you can choose your favorite positions without leaving your seat, finding the perfect viewing angle. A quiet motorized mechanism provides smooth positioning and motion. Collision avoidance system safeguards against accidents and injuries. Slim design sits just 56mm from wall. Cable management keeps everything organized.



FEATURES

●Slim Design: provides a low profile

●Remote Control Included: for easy movements

●Collision Avoidance System: safeguards against accidents and injuries

●Powerful Motor: more stable, strong and durable

●Programmable Position Memory Function: records the position you like

●Cable Management: keep everything organized



SPECIFICATIONS

Product Category: Motorized TV Wall Mount

Rank: Standard

Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=4.0mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,Wall Plate THK=0.16″ pickling sheet)

Pipe Size: 30x15x1.5mm Square Steel Tube,30x20x1.5mm Square Steel Tube (1.2″x0.59″x0.059″ Square Steel Tube,1.2″x0.79″x0.059″ Square Steel Tube)

Surface Finish: Powder Coating

Color: Matte Black,Matte White

Color: Matte Black,Matte White

Dimensions: 56x1220x430mm (2.2″x48″x16.9″)

Fit Screen Size: 32″-75″

Fit Curved TV: Yes

Mounting Hole Pattern : VESA & Universal

VESA Compatible: 200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,400×400,600×300,600×400

Max. Mounting Hole: 600×400

Weight Capacity: 50kg (110lbs)

Strength Tested: 3 Times Approved

Profile: 56mm (2.2″)

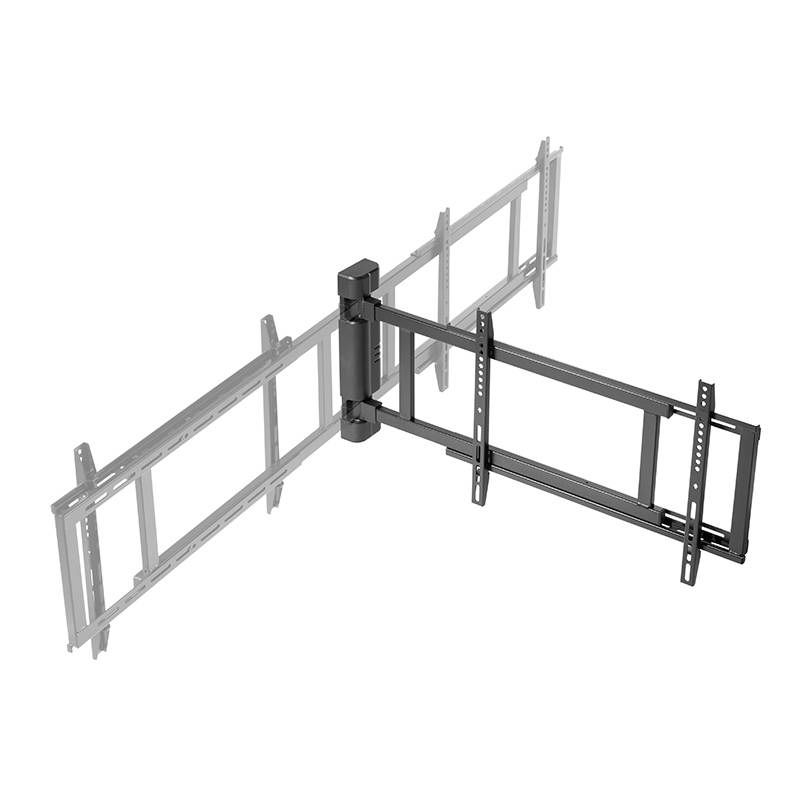

Swivel Range: 0°~+170°

Installation: Solid Wall,Single Stud

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

Direction Indicator: Yes

Cable Management: Yes

Power Supply: Input：AC 100~240V,50/60Hz；Output：DC 12V, 1A

Power Cord Length: 1.5m (4.9ft)

Controller Type: Radio Frequency(RF) Remote

Bubble Level: Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Power Plug Included: Yes

Magnetic: Yes

Lithium Battery: No
