Operation
Place your hands in the inner channel of the device, without moving them.

Description
– Height-end hand dryer, Operation with height velocity air streams without using hot air distributed in two injection lines.
– Height performance, Consumption up to 85% lower than other conventional dryers.
– Microban® antibacterial protection, included in the plastic during manufacture.
– ZeroSmell® gel CK1 odor neutralizing system .
– With water tank and air filter.
– Supplied with a cleaning brush to prevent or solve problems of clogging causedby dirt.
– Suitable for communities and places of very height frequency of use.
– Robust, vandal resistant and safe for being built without sharp edges or other dangerous elements.
– Conforms to European safety directives (CE).

Technical characteristics
Material : ABS
Finishing : Silver gray
Thickness : 3 mm
Air outlet temperature : at an ambient temperature of 20ºC
Motor type : 2 universal motors
Motor speed : 30000 r.p.m.
Air velocity : 340 km/h
Air flow rate : 4650 l/min
Total power : 1760 W
Engine power : 1760 W
Voltage/Frequency : 220-240 V – 50/60 Hz.
Electrical insulation : Class II
Consumption : maximum of 8 A
Sound level at 2 meters : 75 dBA
Projection protection index : IPX1

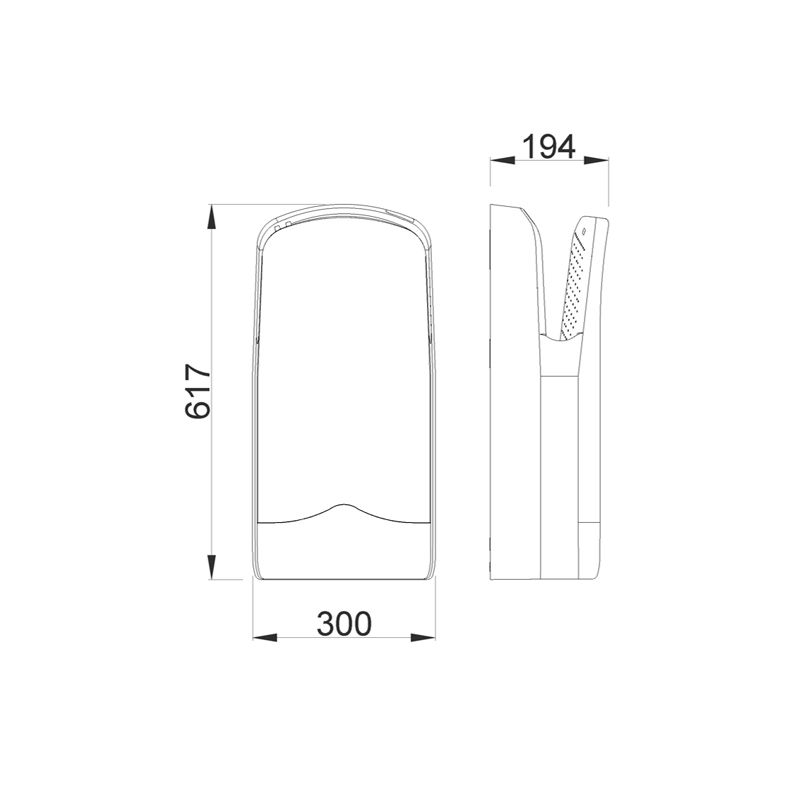

Dimensions : 617 height X 300 width X 194 depth mm
Total net weight : 9.55 kg
Estimated drying time : 6-8 seconds
