Features :
* Double Surface Plating
With copper and nickel plating, it can pass 48 hours salt spray test，which effectively prevent rust.

* Connection Parts in Hardness Processing
The connection parts in heat treated have high hardness, it can increase wear resistance, toughness and fatigue strength to extend hinge life.

* Two Dimensional Screw
The adjustable screw is used for distance adjustment，so that both sides of the cabinet door can be more suitable.

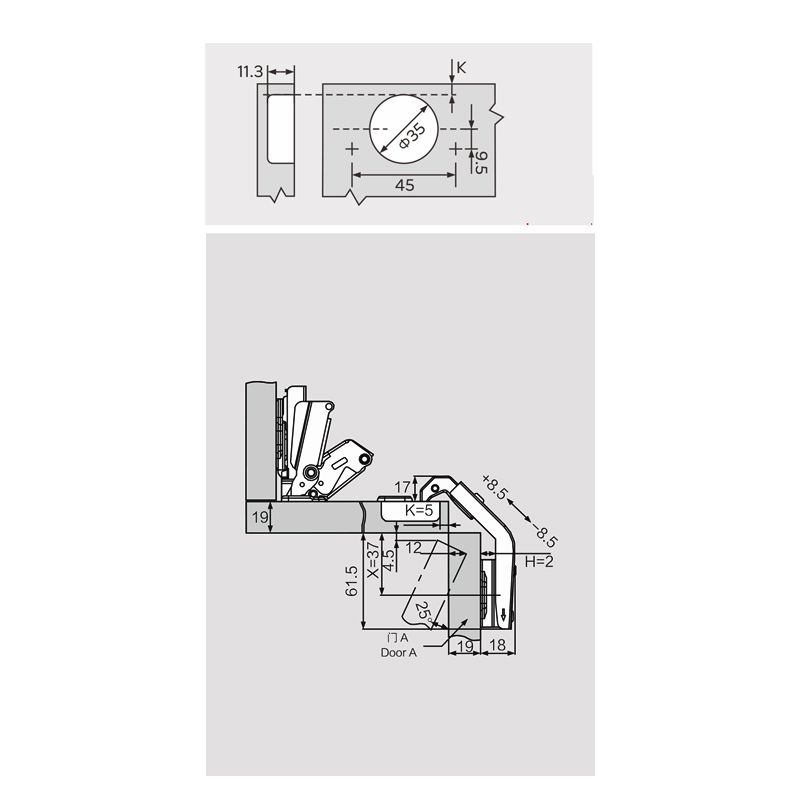

Technical specifications :

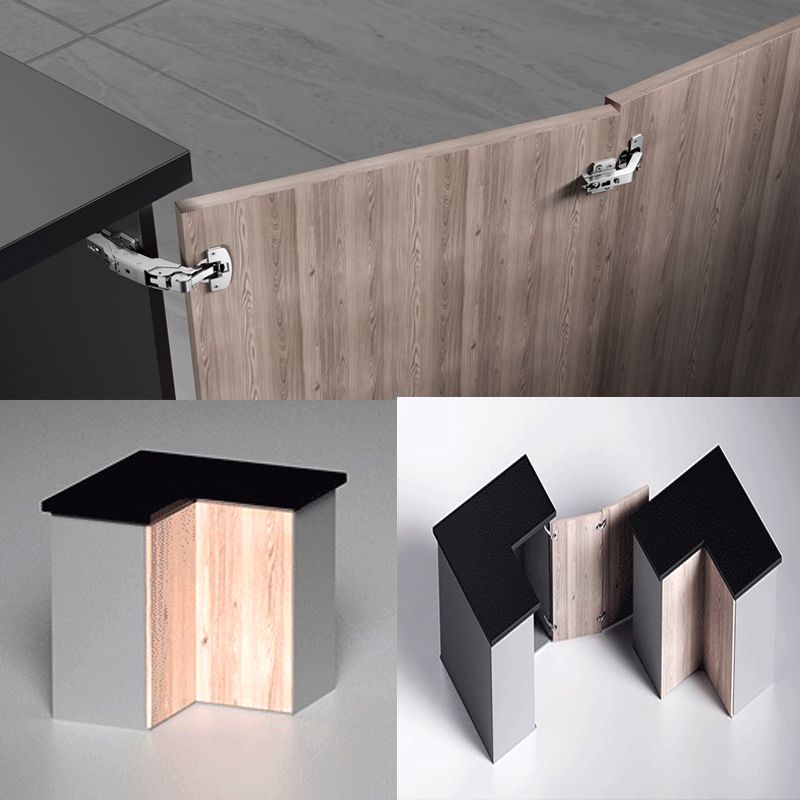

Type: special angle furniture cabinet hinge
Opening Angle : 135°
Diameter of Hinge Cup : Ø35 mm
Depth of Hinge Cup : 11.3 mm
Door Thickness : 14-20 mm
Door(K) Dimension : 3-7 mm
Hole Pitch : 45mm / 48mm / 52mm

Material
Hinge Cup : Iron with nickel plating
Hinge Arm : Iron with nickel plating
Hinge Plate : Iron with nickel plating
