SPECIFICATIONS
Product Category : Full-motion TV Wall Mount
Rank : Standard
Material : Steel
Surface Finish : Powder Coating
Color : Fine Texture Black

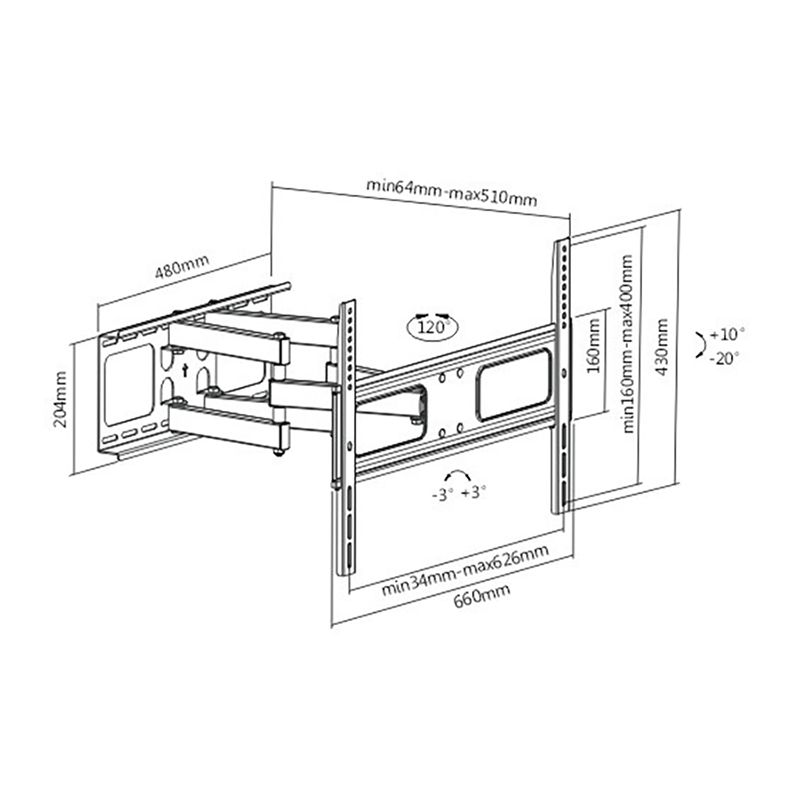

Dimensions : 510x660x430mm
Fit Screen Size : 37″-70″
Fit Curved TV : Yes
Mounting Hole Pattern : Universal
VESA Compatible : 200×200,400×200,300×300,400×400,600×400
Max. Mounting Hole : 600×400
Weight Capacity : 50kg
Strength Tested : 3 Times Approved
Profile : 64mm-510mm
Tilt Range : -20°~+10°
Swivel Range : -60°~+60°
Screen Level : -3°~+3°
Screen Freely Tilting : Yes
Installation : Solid wall,Double Stud(406mm),Double Stud(450mm)
Panel Type : Detachable Panel
Wall Plate Type : Fixed Wall Plate
Cable Management: No
Anti-theft : No
