Double act.spring hinges,Cylindric knobs,with spacers

Swing doors can be found in offices, hospitals, stairwells or restaurants, i.e. in busier places.

Special sliding bushings engineering polymer antifriction: The design of the spacers and the search for a special technopolymer resistant and elastic at the same time, allows a shock-ab-sorbing function in the movement that precedes the stop of the door.

Size : 10 cm

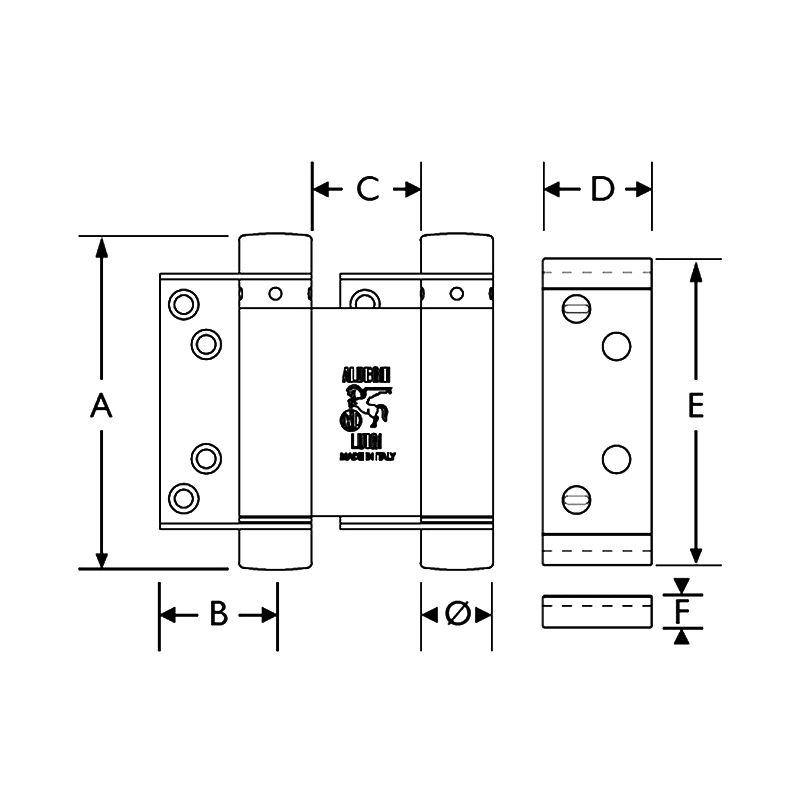

Dimensions: A 100 X B 37 X C 33 mm
Technopolymer spacer size : D 21.5 X E 107 X F 10 mm
Opening side : 2 sides

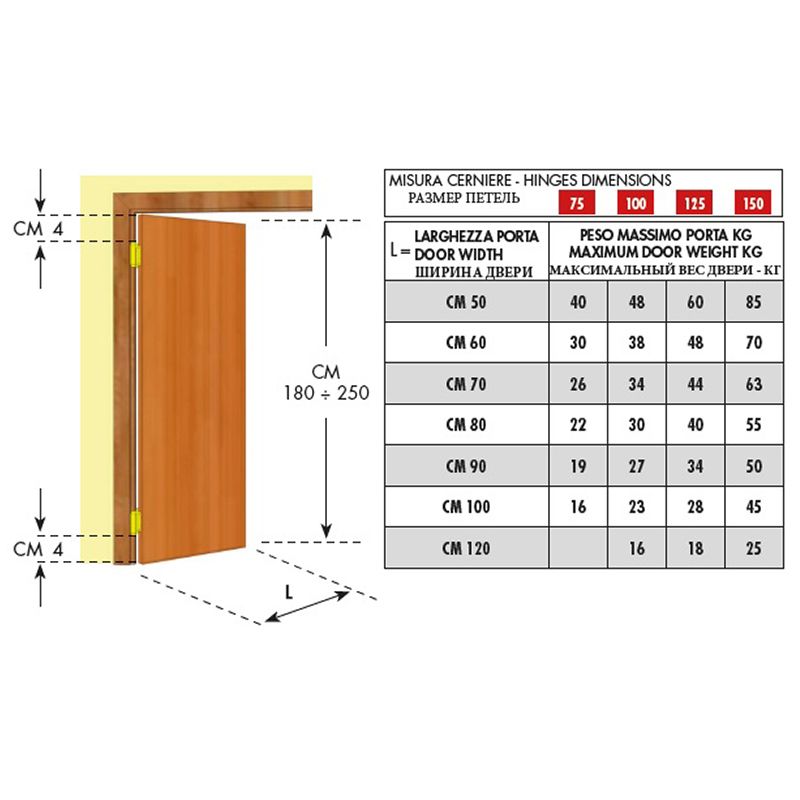

Max. load on 2 Hinges: 25 Kg
Material : plated steel
Color : Nickel-plated
