Technical data
Model name : LINEA
Class group: Domestic switching devices
Class: bell button, Push button
Assembly arrangement: Modular device for domestic switching devices
Model: Other
Method of operation: Push button
Number of contacts as normally closed contact: 0
Number of contacts as normally open contact: 1
Number of contacts as change-over contact: 0
Number of revolving contacts: 0
Contactless type: No
Number of rockers: 1
Number of modules (module system): 100
Number of poles: 1
Nominal voltage: 250 V
Rated current: 10,00 A
With lighting: No
With light source: No
With signal lamp: No
Feedback-signal contact: No
Connection type: Screwed terminal
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Anti-bacterial treatment: No
Surface protection: Untreated
Surface finishing: Matt
Colour: White
Transparent: No
Label space/information surface: No
Imprint: None
Suitable for degree of protection (IP): IP40

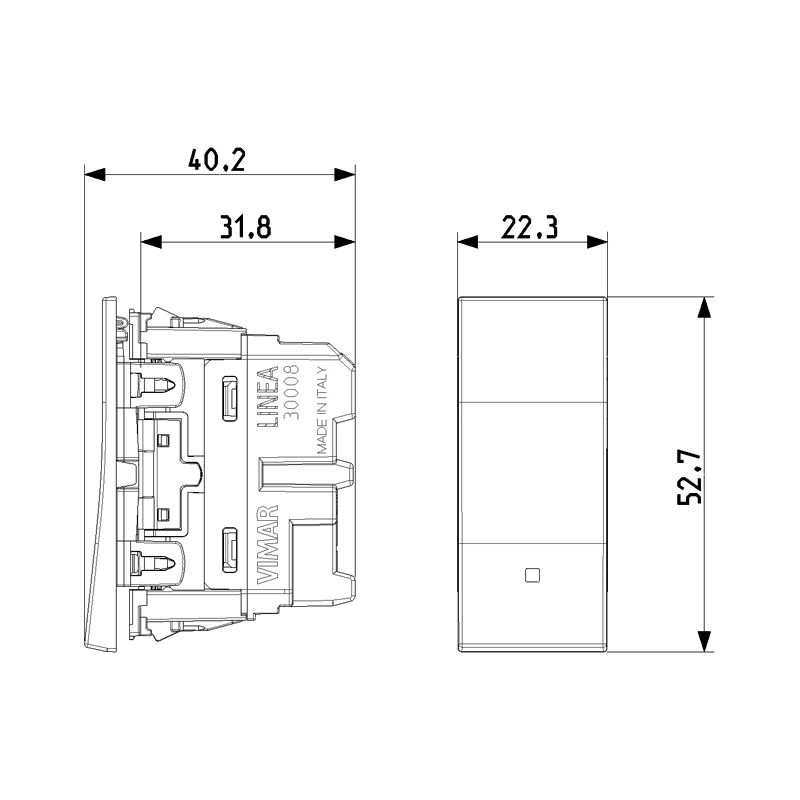

Dimensions : W 22,30 X H 52,80 X D 39,70
mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Certifications
00. CE Marking – EU
01. IMQ – Italy
13. SNI-MGI – Indonesia
37. Marking – Morocco
50. Product Environm. Profile
96. Electrotechnical expert
99. WEEE Directive
