Technical data
Model name : LINEA
Class group: Domestic switching devices
Class: Installation switch
Wiring system: Alternating-/alternating switch
Method of operation: Rocker/button
Assembly arrangement: Modular device for domestic switching devices
Number of modules (module system): 2
Push button switch: No
Number of rockers: 1
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
With mounting plate: No
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Anti-bacterial treatment: No
Surface protection: Untreated
Surface finishing: Matt
Colour: White
Label space/information surface: No
Illumination: Optional
Function lighting: Control and orientation
Type of lighting: LED exchangeable
Suitable for degree of protection (IP): IP40
Impact strength: Other
Nominal voltage: 250 V
Rated current: 10,00 A
Switching current for fluorescent lamps: 10
Feedback-signal contact: No
Connection type: Screwed terminal
Heating switch: No
Washing machine switch: No

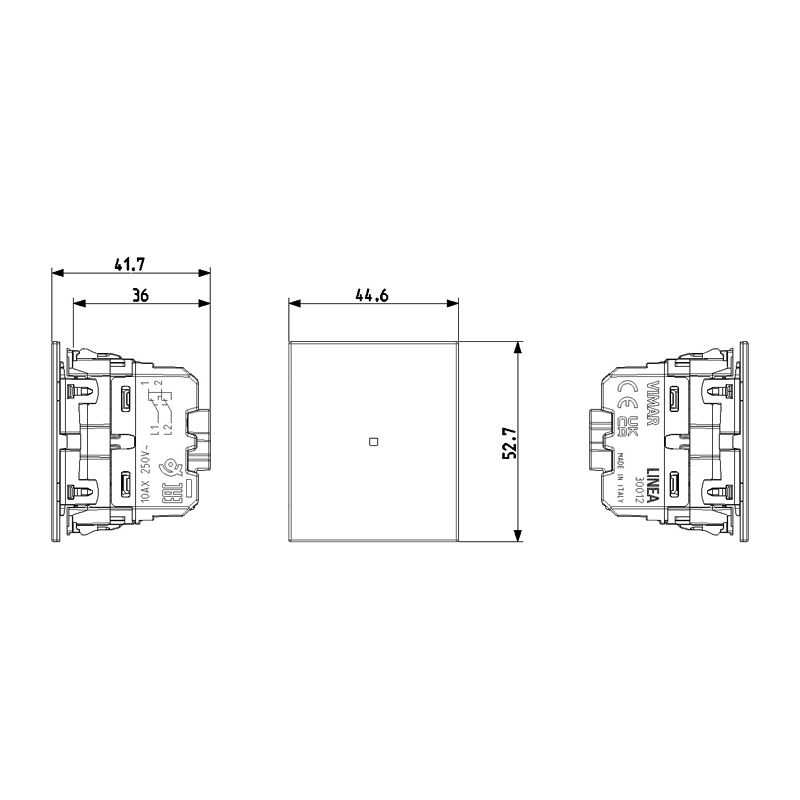

Dimensions : W 44,60 X H 52,70 X D 41,70 mm
Built-in depth: 36,00 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Certifications
00. CE Marking – EU
01. IMQ – Italy
37. Marking – Morocco
96. Electrotechnical expert
99. WEEE Directive
