A new series featuring an unprecedented and elegant design, which brings together the understated allure of sophisticated styling with state-of-the-art technology.

* Precious lightness
Thanks to its unprecedented ergonomic shapes, Linea is slender and lightweight, perfect on any wall.

Coaxial socket outlet with female connector type F (IEC 60169-24), Black. For frequencies up to 2400 MHz. Connection at input and output via male connector type F 01654

Technical data
Model name : LINEA
Class group: Antenna and satellite technique
Class: Antenna socket box
Model: End socket
Mounting method: Flush-mounted
Number of modules (module system): 1
Cover: None
Number of outlets: 1
Suitable for cable modem: No
Suitable for remote power supply: Yes
Type of fastening: Snap mounting (engagement)
Colour: Black
Surface protection: Untreated
Surface finishing: Matt
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Anti-bacterial treatment: No
Degree of protection (IP): IP20

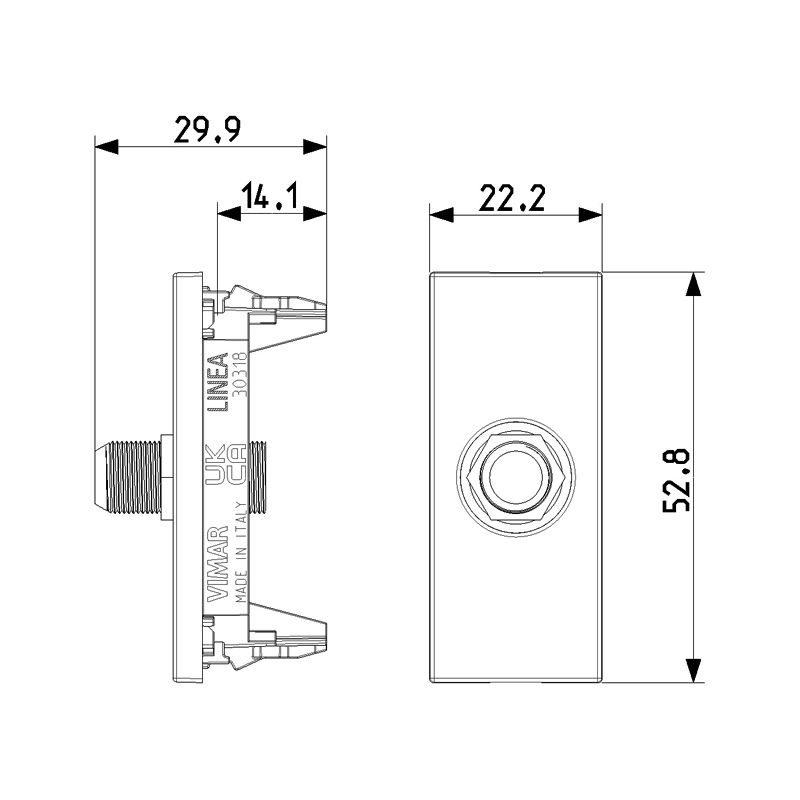

Dimensions : W 22,30 X H 52,80 X D 29,85 mm

Certifications
00. CE Marking – EU
37. Marking – Morocco
99. WEEE Directive
