FEATURES

●Easy Assembly: Installation is as easy as 1-2-3

●Open Architecture: provides increased ventilation and easier access to wires

●Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare



SPECIFICATIONS

Product Category : Tilt TV Wall Mount

Rank : Standard

Material : Steel,Plastic

Metal Sheet Thickness : Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079″ cold-rolled sheet,Wall Plate THK=0.079″ cold-rolled sheet)

Surface Finish : Powder Coating

Color : Matte Black

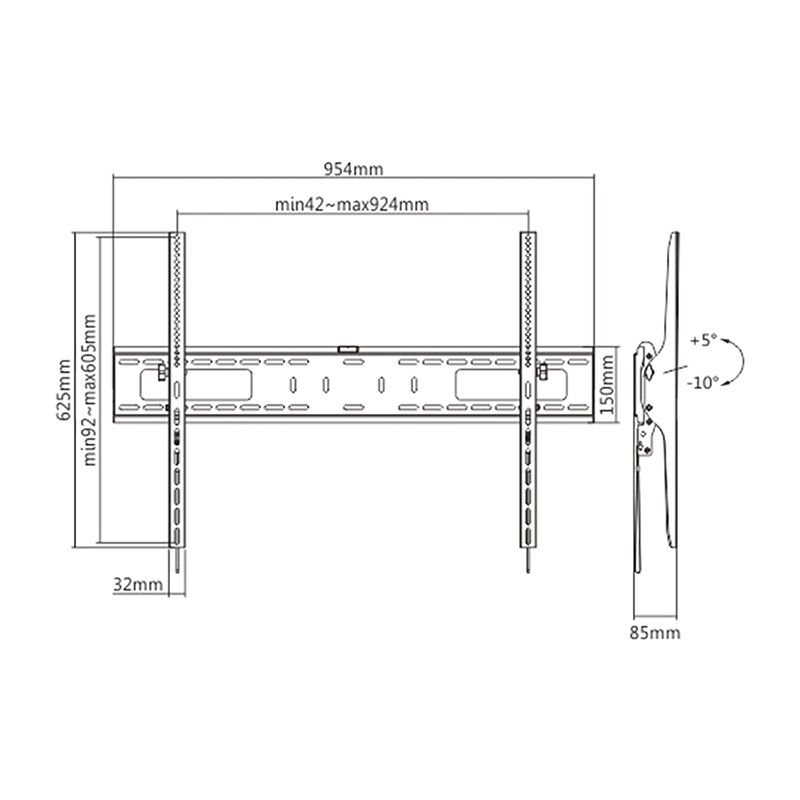

Dimensions : 954x625x85mm

Fit Screen Size : 60″-100″

Fit Curved TV : Yes

Mounting Hole Pattern : VESA & Universal

VESA Compatible : 200×200,300×200,400×200,300×300,400×300,400×400,600×400,600×600,800×600,900×600

Max. Mounting Hole : 900×600

Weight Capacity : 75kg

Strength Tested : 3 Times Approved

Profile : 85mm

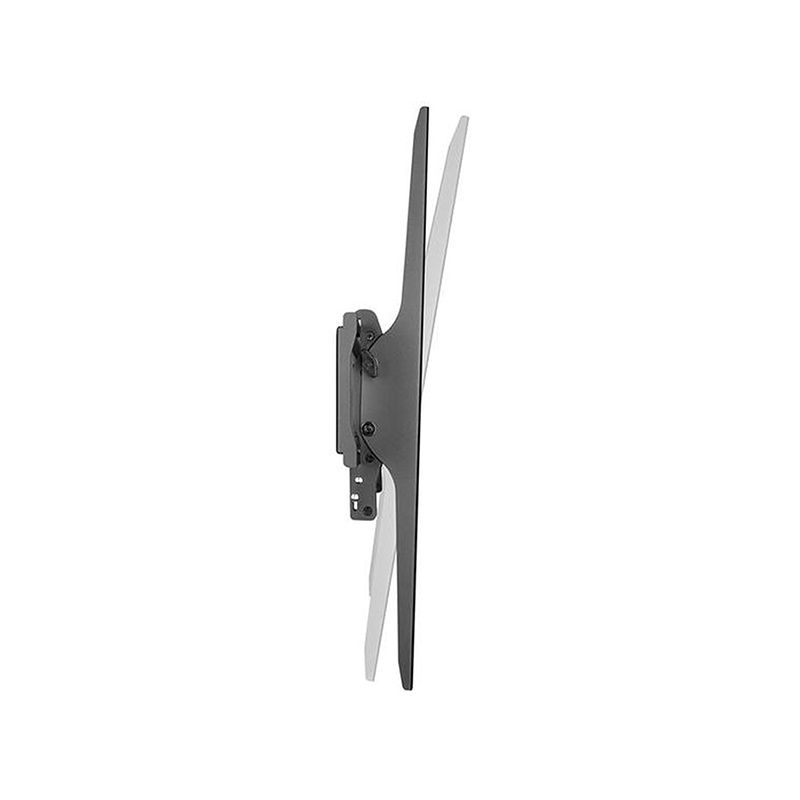

Tilt Range :  +5°~-10°

Screen Freely Tilting : No

Installation : Solid Wall,Double Stud(406mm/450mm/600mm)

Panel Type : Detachable Panel

Wall Plate Type : Fixed Wall Plate

Cable Management : No

Anti-theft : No
