Technical data
Model name : LINEA
Class group: Domestic switching devices
Class: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
With mounting grid: Yes
Flush-mounted installation: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: No
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Anti-bacterial treatment: No
Surface protection: Untreated
Surface finishing: Matt
Colour: white
Degree of protection (IP): IP00
Type of fastening: Engage (snap)

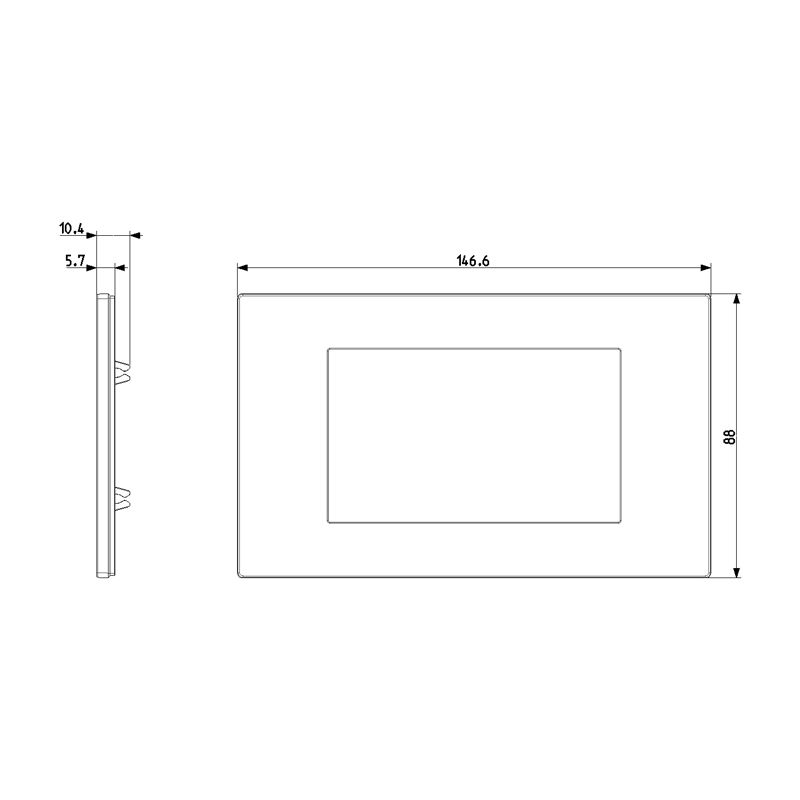

Dimensions : W 146.6 X H 88 X D 10.40 mm
Built-in width: 146.6 mm
Built-in height: 4.70 mm
Diameter bore hole (opening): 0 mm
Related product : 079004003
