Technical data
Model name : LINEA
Class group: Domestic switching devices
Class: Insert/cover for communication technology
Assembly arrangement: Modular device for domestic switching devices
Utilization: UAE/IAE (ISDN)
Support ring: No
With dust cover: No
With hinged lid: No
Outlet direction: Straight
Imprintable label: Without indication field
With imprint: No
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Anti-bacterial treatment: No
Surface protection: Untreated
Surface finishing: Matt
Colour: White
RAL-number (similar): 9016
Transparent: No
Type of fastening: Clamp mounting
Number of modules (module system): 1
With buses/couplings: No
Suitable for number of connectors: 1
With strain relief: No
Shielded buses: No
Shielded housing: No
Luster terminal: No
With lighting: No
Suitable for degree of protection (IP): IP20

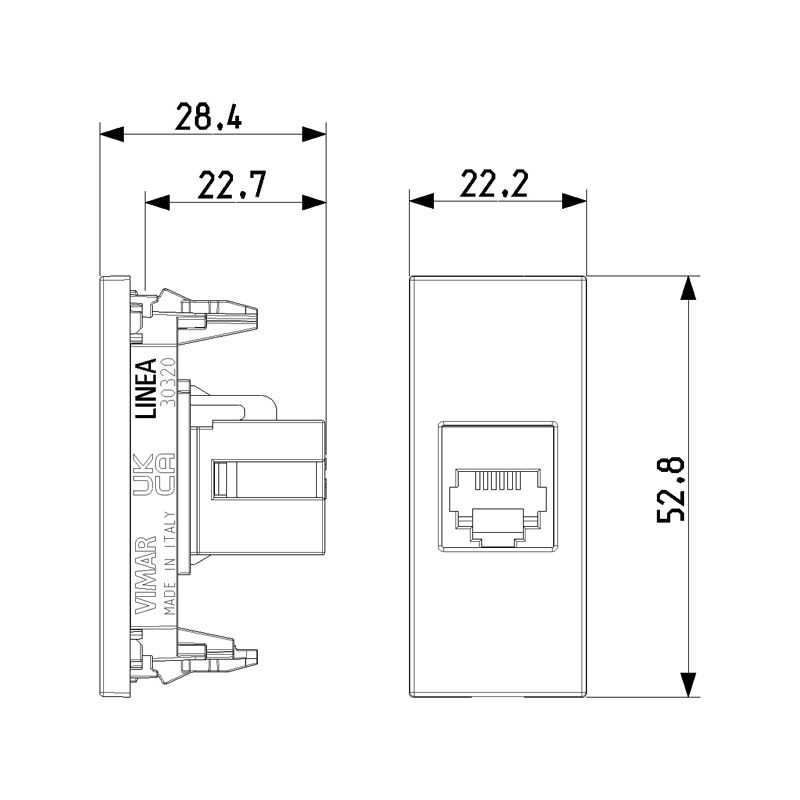

Dimensions : W 22,30 X H 52,80 X D 28,40 mm

Certifications
00. CE Marking – EU
99. WEEE Directive
