FEATURES
●Special Swivel Ability: supports flexible viewing angle and enough space for maintenance
●Automatic Spring Locks with Quick Release Cords: prevents TV from removal when fixing
●Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
●Easy-Grip Knobs: for quick tilt and lock
●Open Architecture: provides increased ventilation and easier access to wires
●Built-In Level Adjustment: ensures perfect positioning
●Integrated Bubble Level: assures alignment

SPECIFICATION
Product Category: Tilt TV Wall Mount
Rank: Premium
Material: Steel,Plastic
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Quick Release Pull Tabs THK=2.5mm pickling sheet,Bracket Arm THK=2mm cold-rolled sheet (Wall Plate THK=0.079″ cold-rolled sheet,Quick Release Pull Tabs THK=0.098″ pickling sheet,Bracket Arm THK=0.079″ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 134x504x430mm (5.3″x19.8″x16.9″)
Fit Screen Size: 32″-70″
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 150X100, 150×150, 200×100, 200×200, 300X200, 300X300, 400×200, 400X300, 400×400
Max. VESA: 540x405mm
Weight Capacity: 70kg (154lbs)
Strength Tested: 4 Times Approved
Profile: 78~134mm (3.1″~5.3″)
Tilt Range: +5°~-12°

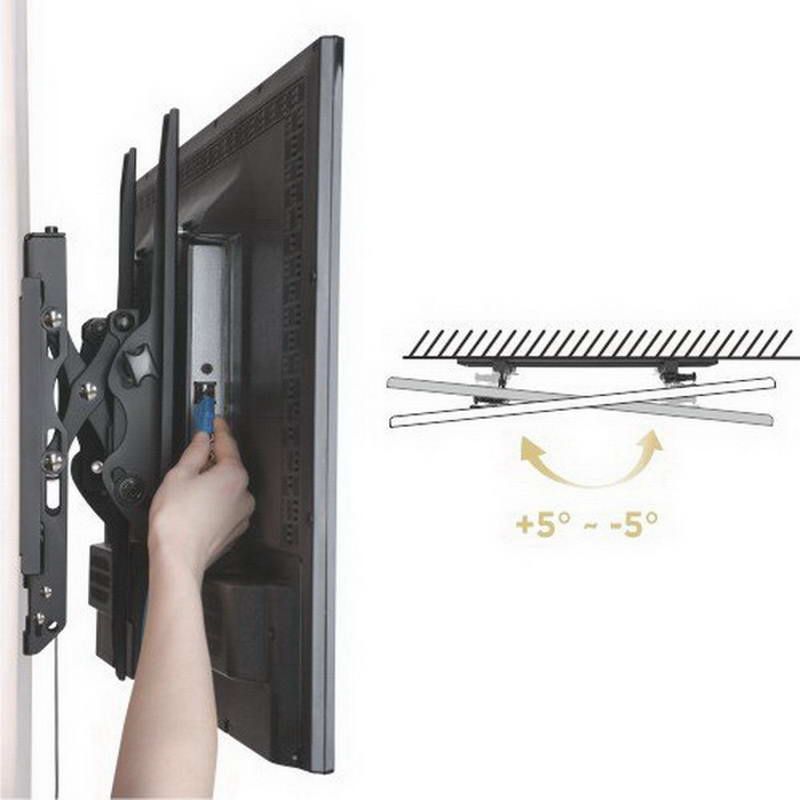

Swivel Range: +5°~-5°
Screen Level: ±25mm
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: No
Cable Management: No
Anti-theft: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Instruction Manual Included: Yes
Power Plug Included: No
Magnetic: No
Lithium Battery: No
By Function: Tilting
